Advance HCT1100 Marine Gearbox

Overview

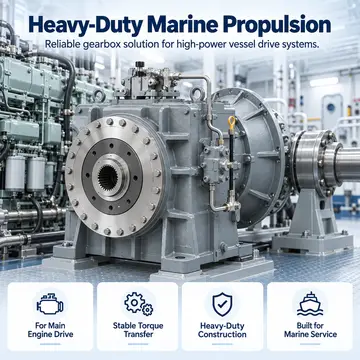

The Advance HCT1100 is a large heavy-duty marine reduction gearbox for high-power ship and boat propulsion. Its rugged cast-iron housing, precision helical gears, and large multi-plate clutch deliver high rated propulsion up to 150 KN, transmitting power reliably from the main diesel engine to the propeller shaft. Optional push-pull cable and electronic control are available, and it is supplied ready for global export.

Key selling points

• High rated propulsion of 150 KN for demanding marine drive systems
• Wide reduction ratio range (5.05–8.9) to match diverse vessels
• Heavy-duty cast-iron housing for long service life in harsh marine environments
• Precision helical gears and large multi-plate clutch for smooth, reliable transmission
• Optional push-pull cable or electronic control; wooden-box export packing

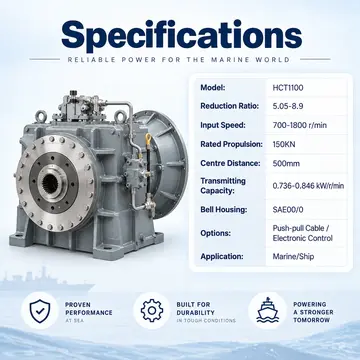

Technical specifications

Features & highlights

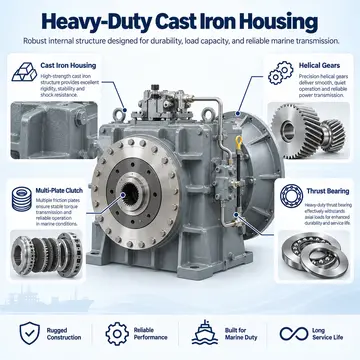

• Rigid cast-iron construction resists vibration and supports high loads

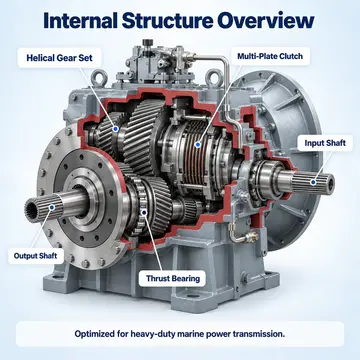

• Helical gearset with heavy-duty thrust bearing for smooth engagement and axial-load handling

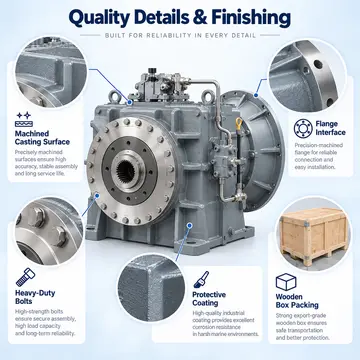

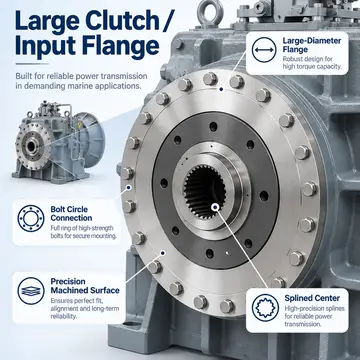

• Large-diameter machined input/output flange for secure, high-torque connection
• Multi-plate clutch for reliable engagement under high power
• Lifting eyes for safe handling and installation

Typical applications

Main propulsion for cargo ships, tug boats, large fishing vessels, and offshore workboats requiring high-power, heavy-duty transmission.

Customization options

Reduction ratio selection, input-speed matching, control options (push-pull cable or electronic control), bell-housing and coupling configurations, and OEM requirements available on request. Contact us with your engine model and vessel specifications for a tailored recommendation.

Ordering information

Supplied in protective wooden-box packing for safe global transport. Please confirm engine model, power, and required reduction ratio when ordering.
